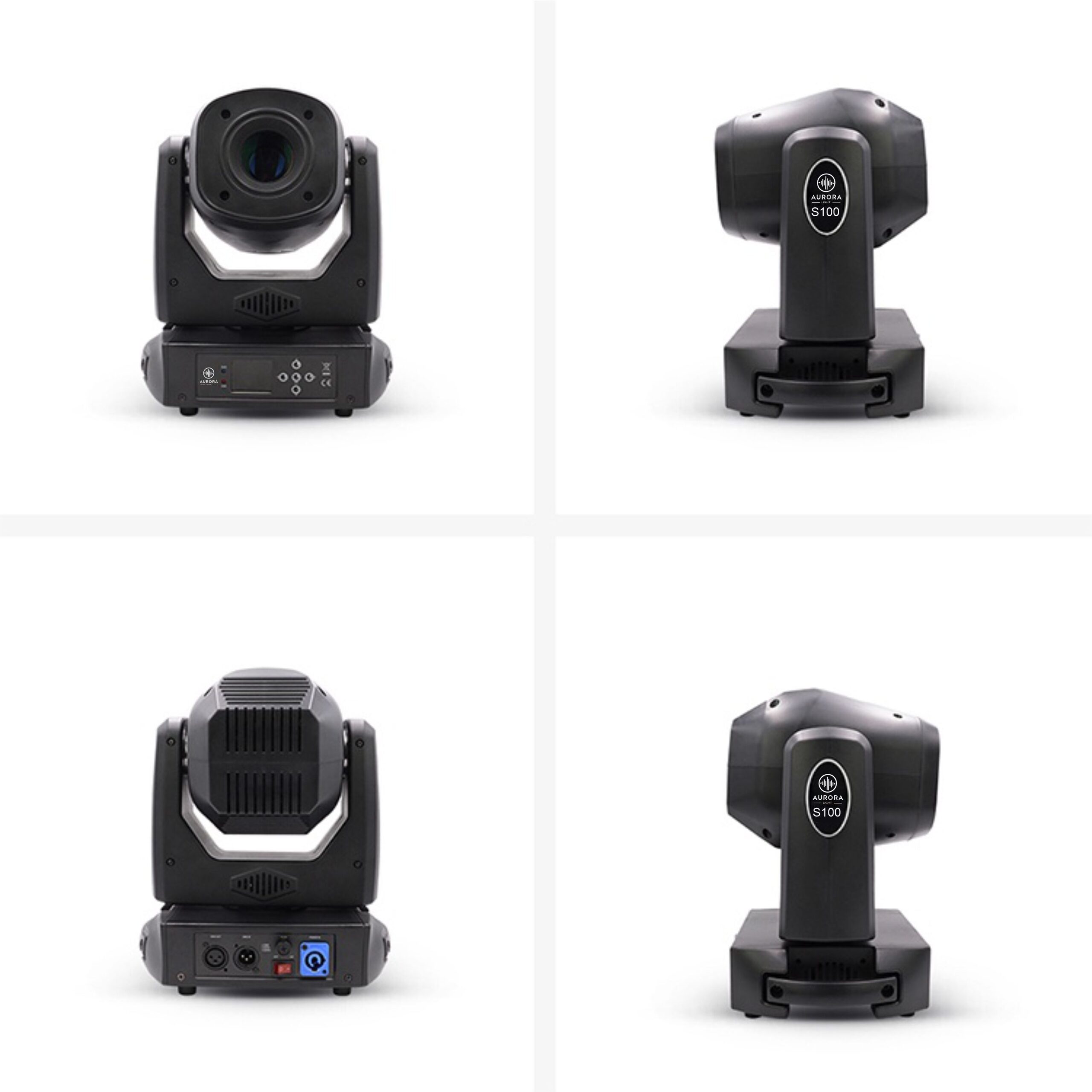

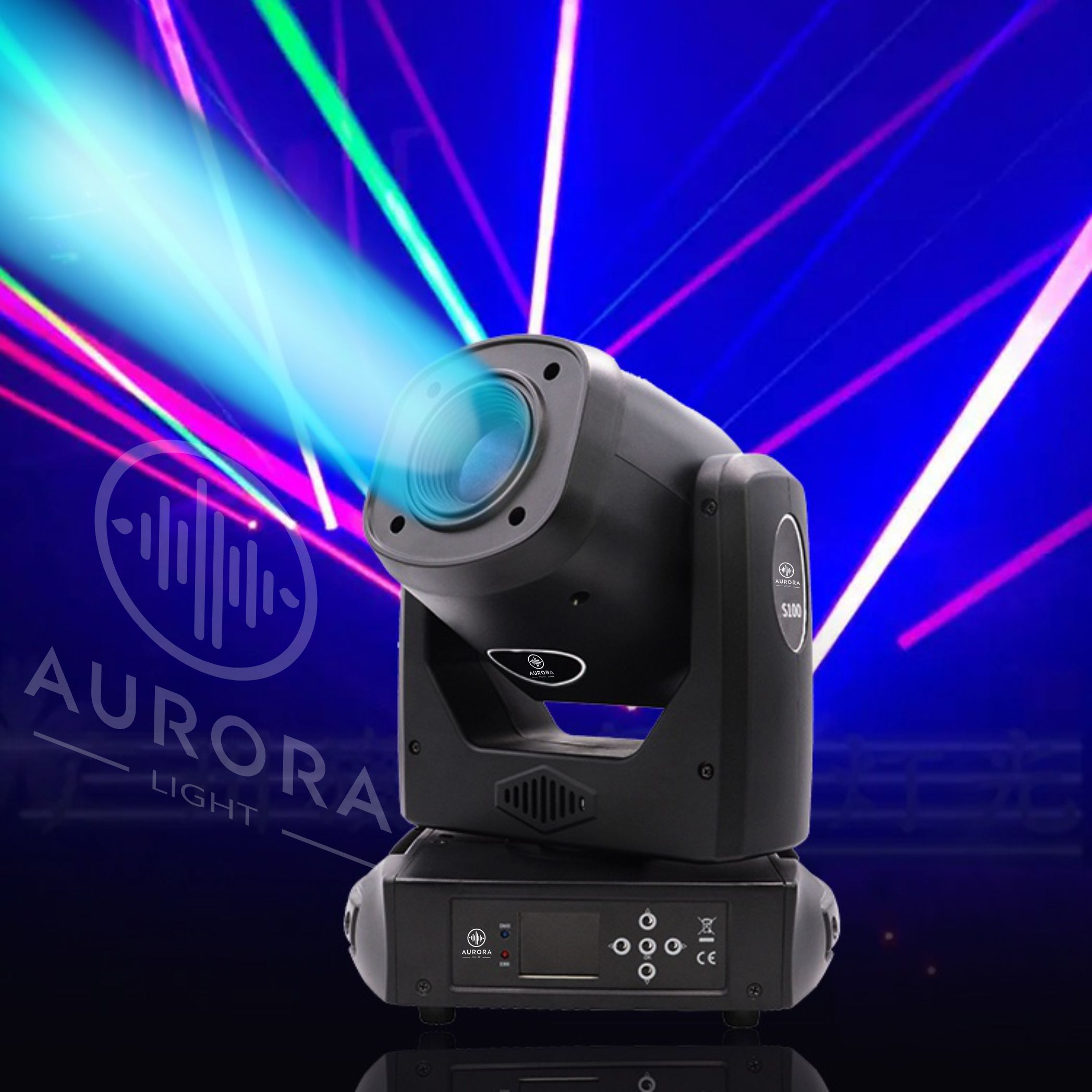

S100 – 100W LED Moving Spot

The S100 is a high-performance 100W LED Moving Spot Light, designed for professional use in concerts, theaters, events, and other stage productions. Equipped with an advanced 100W LED source and a vibrant RGB 3in1 LED strip, this moving spot offers exceptional brightness and color versatility. The S100 provides powerful beam control with 7 fixed gobos, 2 rotating glass gobos, and 5 prismatic effects, allowing users to create dynamic lighting designs. With a long lifespan of 50,000 hours, this energy-efficient lighting fixture ensures both reliable performance and cost-effectiveness. Featuring a 540° pan and 270° tilt range, the S100 offers precise and flexible movement, ideal for high-impact lighting effects.

Product Features (Dynamic Lighting with Advanced Control)

  • 100W LED Light Source: The S100 utilizes a high-output 100W LED, providing bright and intense light output while maintaining energy efficiency. Combined with 21×0.5W RGB 3in1 LEDs, it creates a wide color spectrum, delivering rich and vibrant colors for any stage or event.
  • RGB 3in1 LED Strip: The RGB 3in1 LED strip integrated into the S100 allows for smooth color transitions and dynamic color-changing effects, expanding the fixture’s ability to create a variety of atmospheric lighting looks.
  • Advanced Gobo Effects:
    • 7 Fixed Gobos + Blank: Provides a wide selection of patterns for static projections.
    • 2 Rotating Glass Gobos + 4 Metal Gobos: These rotating gobos create impressive visual effects by projecting various shapes and patterns.
    • Blank Gobo Option: Offers flexibility in creating a solid beam of light when needed.
  • Prism Effects: Equipped with 5 prisms, the S100 offers bidirectional rotation for creating sophisticated effects, adding extra depth and dimension to your light display.
  • Precise Dimmer Control: The 0-100% linear dimmer allows for smooth, gradual fading of the light intensity, ensuring full control over brightness levels to match the needs of any performance or event.
  • Adjustable Strobe Speed: The adjustable strobe speed offers fast and slow strobe effects, with a range of 0-10 times per second (T/S), perfect for creating stunning visual impacts in concerts and dynamic light shows.
  • Multiple Control Modes:
    • Auto Mode: Automatic operation with pre-programmed effects.
    • Sound-activated Mode: The light reacts to the beat and rhythm of music, ideal for events with live performances or DJs.
    • DMX Control Mode: Offers full remote control over lighting functions using DMX512.
    • Master-Slave Mode: Link multiple units together for synchronized lighting effects.
  • DMX Channel Options:
    • S100: 11/16 DMX channels for detailed control of all functions.
    • S105: 13/18 DMX channels for additional control options.
  • 50,000-Hour Lifespan: With a 50,000-hour lifespan, the S100 provides long-lasting performance, reducing maintenance costs and downtime for users.
  • Wide Voltage Compatibility: Operates on AC100-240V at 50/60Hz, making it compatible with power supplies in various regions around the world.
  • Compact and Lightweight: The S100 is designed to be both powerful and portable, with dimensions of 352720 cm, making it easy to transport and install in different venues.
  • Ideal for Versatile Applications: Perfect for concerts, theaters, events, nightclubs, and stage shows, the S100 provides professional-level lighting effects for a wide range of applications.

Technical Data (Detailed Product Specifications)

  • Model: S100
  • Light Source:
    • 100W LED Light
    • 21×0.5W RGB 3in1 LED Strip
  • Voltage: AC100-240V, 50/60Hz
  • Rated Power: 150W
  • Lifespan: 50,000 hours
  • Movement Angle:
    • Pan: 540°
    • Tilt: 270°
  • Color: 7 + Blank (with half-color effects)
  • Fixed Gobo: 7 + Blank
  • Rotating Gobo: 2 Glass Gobos + 4 Metal Gobos + Blank
  • Prism Effects: 5 Prisms with bidirectional rotation
  • Dimmer: 0-100% Linear Dimmer
  • Strobe: Speed Adjustable (0-10 T/S)
  • Control Modes: Auto / Sound / DMX / Master-Slave
  • DMX Channels:
    • S100: 11/16 channels
    • S105: 13/18 channels
  • Product Size: 352720 cm
  • Packing Info: 1 unit per carton
  • Applications: Concerts, Theaters, Events, Nightclubs, Stage Shows

The S100 – 100W LED Moving Spot is a powerful, versatile, and highly efficient lighting solution that provides high-quality effects for any performance or event. Whether you’re designing intricate light shows for theaters, concerts, or nightclubs, the S100 offers the perfect combination of brightness, control, and flexibility. With its RGB 3in1 LED strip, advanced gobo effects, and smooth pan and tilt movements, it is designed to deliver dynamic and captivating lighting displays with ease.
