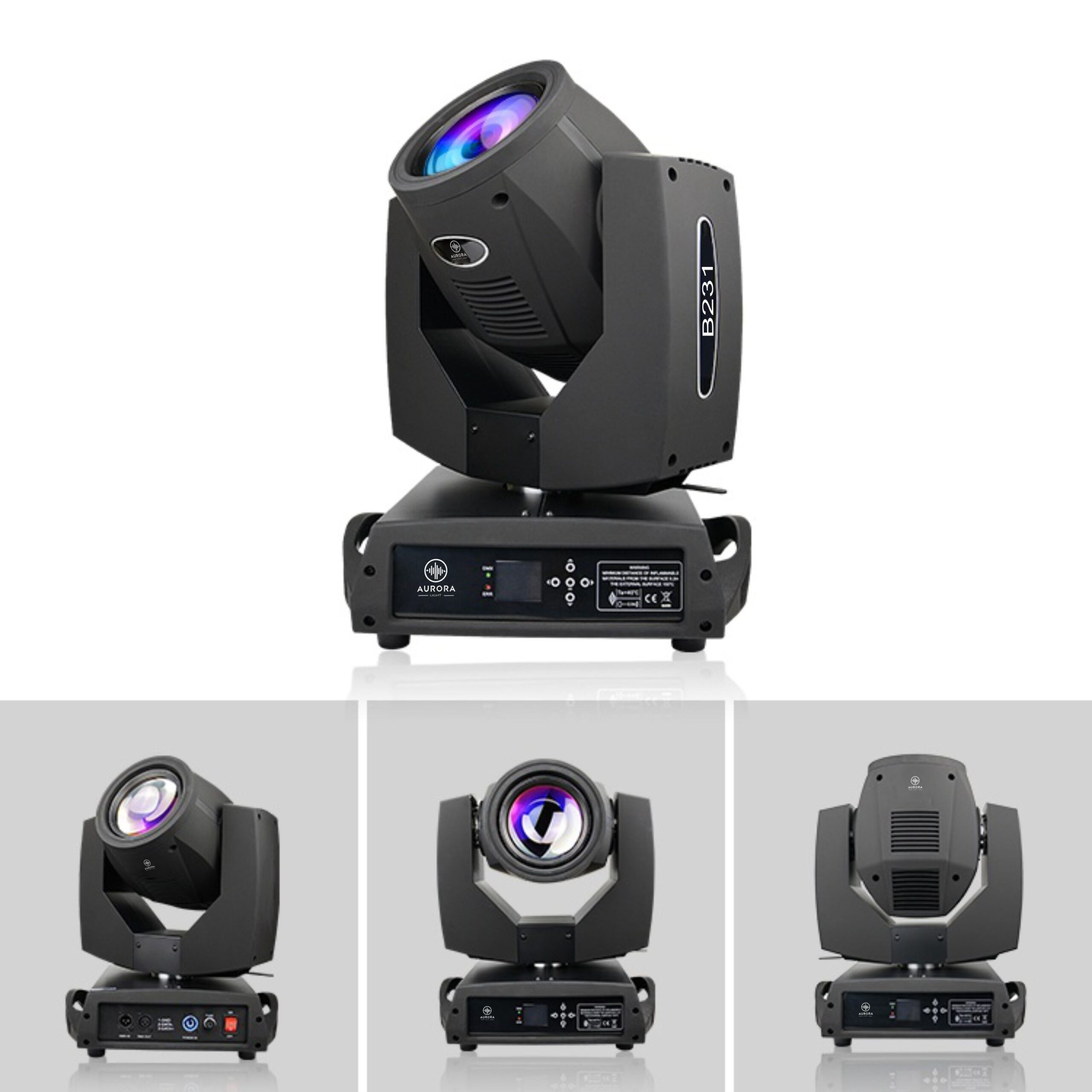

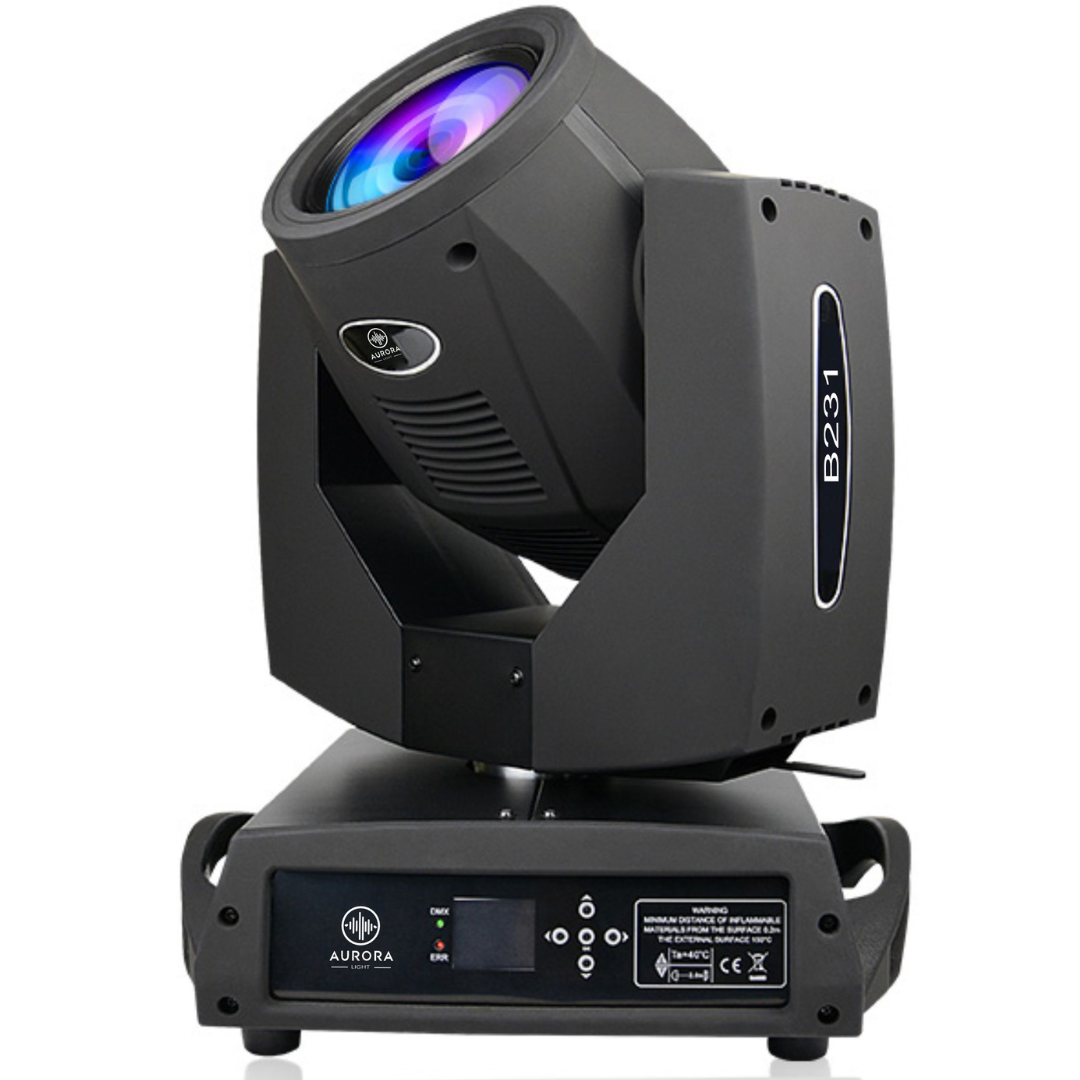

B231 – 230W OSRAM 7R Moving Head Beam Light

The B231 230W 7R Moving Beam Light is a high-performance, precision-engineered fixture designed for impactful beam effects in professional lighting setups. Powered by a premium OSRAM 7R 230W discharge lamp, this moving head delivers intense, narrow beams with crystal-clear focus—ideal for concert stages, nightclubs, festivals, and touring events.

Engineered for versatility and powerful output, the B231 offers fast, fluid movement, vibrant colors, sharp gobos, and advanced control options. Its compact design, combined with professional-grade optical systems, makes it a popular choice among lighting designers who demand reliability and cutting-edge visual effects.

Product Features

  • OSRAM 230W 7R Bulb: High-intensity beam with long throw and focused output, delivering punchy mid-air effects and defined aerial patterns.
  • Rich Color and Gobo Effects: Equipped with a color wheel and gobo wheel to project dynamic textures and create stunning light shows.
  • Fast & Precise Movement: Smooth pan and tilt movements, ideal for synchronized light shows and fast beam sweeps across the stage.
  • Prism and Frost Effects (Optional): Offers beam splitting and softening effects to enhance visual depth and add atmosphere to your scenes.
  • Multiple Control Modes: Supports DMX512, Auto-run, Sound-activated, and Master-slave operation, giving full control in various event setups.
  • Professional Applications: Perfect for concerts, clubs, tours, DJ setups, theaters, and TV production, where precise, high-energy lighting is required.

Technical Data

  • Model: B231
  • Light Source: OSRAM 230W 7R Discharge Lamp
  • Beam Angle: Ultra-narrow, designed for long-distance beam projection
  • Voltage: AC100–240V, 50/60Hz
  • Control Modes: Auto / Sound / DMX / Master-slave
  • DMX Channels: (Typically 16 channels; can be confirmed based on specific controller mapping)
  • Color Wheel: Multiple colors + white
  • Gobo Wheel: Static gobos + shake function
  • Prism: 8-facet prism (optional bidirectional rotation)
  • Movement:
    • Pan: 540°
    • Tilt: 270°
    • High-speed, 16-bit precision movement
  • Strobe: High-speed strobe effect, up to 13 flashes per second
  • Lifespan: Up to 2,000–3,000 hours (lamp life)
  • Display: Digital or LCD menu with navigation buttons
  • Housing: Compact and durable design for touring
  • Cooling System: Efficient fan cooling
  • IP Rating: IP20 (indoor use)
  • Application: Concerts, touring, nightclubs, DJ shows, stage lighting, live performances

Ready to elevate your light show? The B231 OSRAM 230W 7R Moving Beam is your go-to fixture for delivering high-impact visuals, unmatched brightness, and reliability trusted by professionals worldwide.
