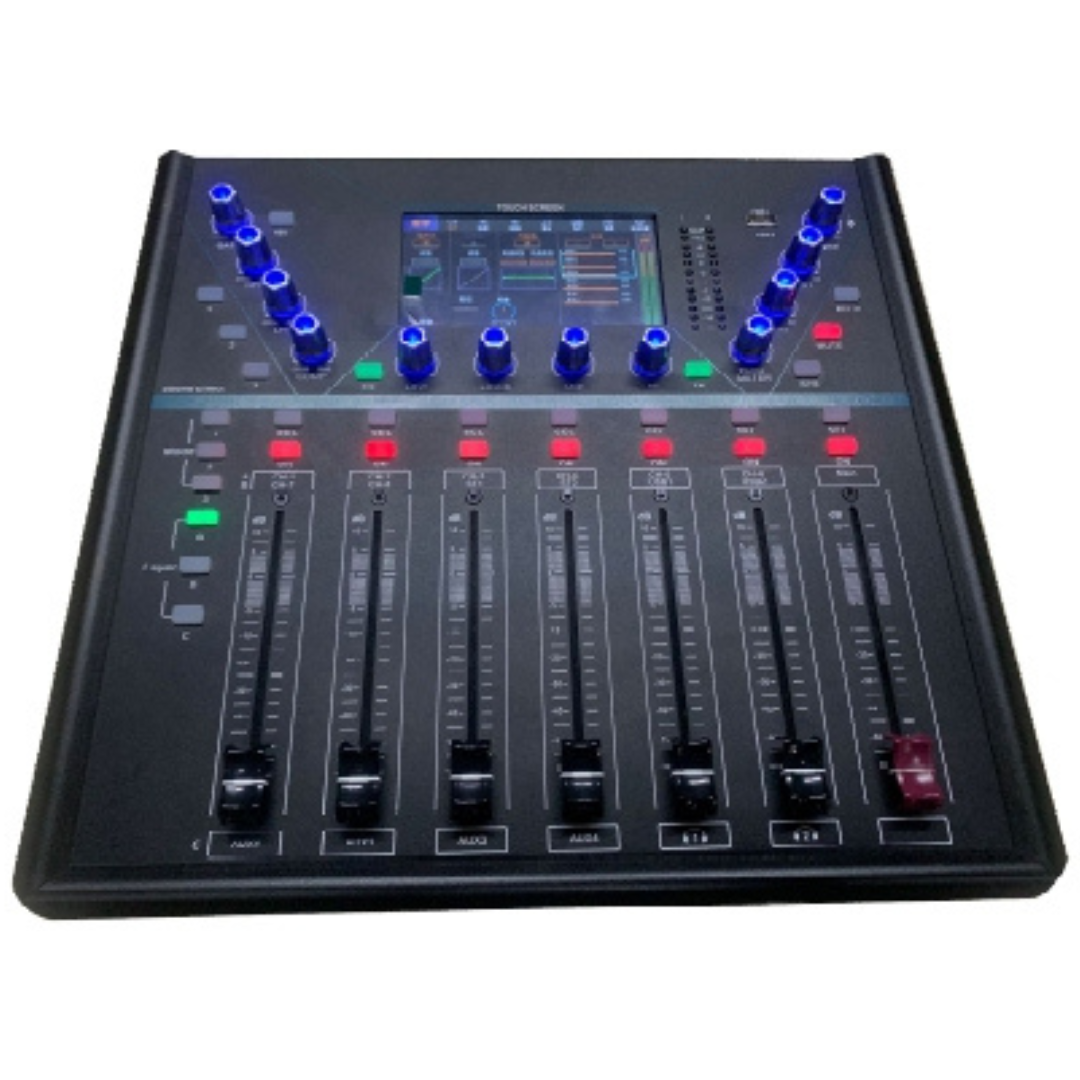

The X12 is a next-generation digital mixer featuring a 7” HD touchscreen, motorized faders, dual USB soundcards, and full DSP control. Perfect for pro audio installations, touring, and streaming.
Key Features
- 12 Mic/Line inputs + 2 stereo analog inputs
- 3 digital inputs (Bluetooth/MP3 + dual USB)
- 8 analog outputs (L/R, 4 AUX, 2 headphones)
- Dual USB recording outputs + MP3 REC
- Built-in DSP: EQ, limiter, delay, phase, noise gate
- 2 independent effect engines (vocal & instrument FX)
- Anti-feedback function per channel
- Motorized faders (100mm travel)
- Dual OTG USB for direct live streaming + phone charging
- Control via app, PC, IR remote, or TCP/IP
- 20 user scenes + quick recall buttons
- Built-in signal generator + spectrum analyzer (RTA)
Specifications
- Operating System: Linux-based
- Display: 7” 1024×600 capacitive touchscreen
- CPU: 5-core processor, 1.2GHz, 17s boot time
- Power: 12V DC (up to 5h battery use) or AC 100–240V
- Control: Wired (100M LAN) or wireless (via external router)
